VitaScan LT
USB Ultrasound Bladder Monitor
Real-time bladder scanning is a safe and easy, non-invasive method to measure bladder volume. bladder scanning measures ultrasonic reflections wuthin a patient's body and differentiates the urinary bladder from the surrounding tissues. VitaScan LT is applicable in many clinical areas to determine bladder volume, time for bladder emptying and detection of Post Void Residual(PVR). Bladder image in real-time ultrasound makes it easier to detect the bladder before scanning. VitaScan LT calculates patient's bladder volume in multiple planes and displays volume and bladder image on the screen.
The VitaScan LT is fast and easy to use. When user presses the scan button the VitaScan LT automatically produces a three-dimensional image and calculates and displays the bladder volume within seconds. Measurements can be transmitted to your office or facility computer for viewing, printing or archiving.
Medical indications
- Urinary incontinence
- Post void Residual(PVR)
- Overactive Bladder
- Urinary retention
- Post Operative Urinary Retention(POUR)
- Benign prostatic hyperplasia
- Urinary tract infections
- Bladder Outlet Obstruction
- Bladder retraining(biofeedback)
Features
- Automatic volume measurements.
- Simple and intuitive to use. No ultrasound experience required.
- PreScan mode provided for easy and precise location of the bladder.
- Variety of patient types including:pediatric, women, men and obese patients.
- Bladder volume calculations displayed in large digit.
- Real-time Ultrasound Bladder Monitor.
- View and save exams easily, creating EMRs for your patients.
- Software updates via USB/Flash drive.
- USB ultrasound probe connection.
- Low power consumption.
- Optional mobile cart with locking wheel.
:: Technical Specifications and Ordering Information ::
Technical Specifications
| Volume range | 0-1000ml |
| Accuracy | +/- 10% of reading, +/- 20ml |
| Probe Frequency | 2.35MHz |
| Scanning method | Sector, 180 degress |
| Rotation positions | 6,12 or 24 rotating positions |
| Sweep angle | 110degrees |
| Detection depth | 100, 160 or 230mm |
| Probe dimension(L x M x H) | 14 x 4.5 x 6.6cm (5.5x1.8x2.6 in.) |
| Probe weight incl. cable | 0.38kg(0.84lb.) |
| Power consumption | Supplied by USB port |
| Operating conditions | +10℃ to +45℃, 10%-80% rel. humidity |
| Storage temperature | -30℃to-50℃ |
| PC requirements | Window XP/Win vista Operating System |
| Language | Support multiple language |
Ordering information
| Description | Order Number |

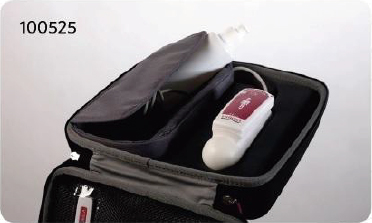

| vitaScan LT incl.:USB ultrasound probe, softwarem documentation and carrying case | 100525 |
| vitaScan Calibration Check Phantom | 100531 |
| vitaScan Calibration Test Tool | 100651 |

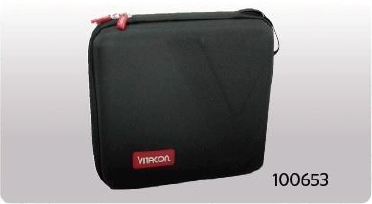

| vitaScan LT carrying case | 100653 |

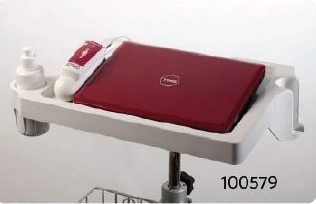

| vitaScan crib(for mobile cart) | 100579 |
Specifications subject to change without notice
